xRover
Buggy M

Off-road special — mid-size

XR-502006

xRover REHA Buggy M

From

€5,190

Colors (7)

The color can be customized to your preference — contact us with your own design.

Contact dealerTest drive

You don't have to do this alone

Standard line models are eligible for foundation-based funding. We'll walk you through the whole process — step by step, no extra paperwork on your shoulders.

About the product

A special monolithic aluminium-reinforced construction. Bundles the full All-in-One M kit plus Buggy 20" × 4.0 wheels and a dedicated transport bag.

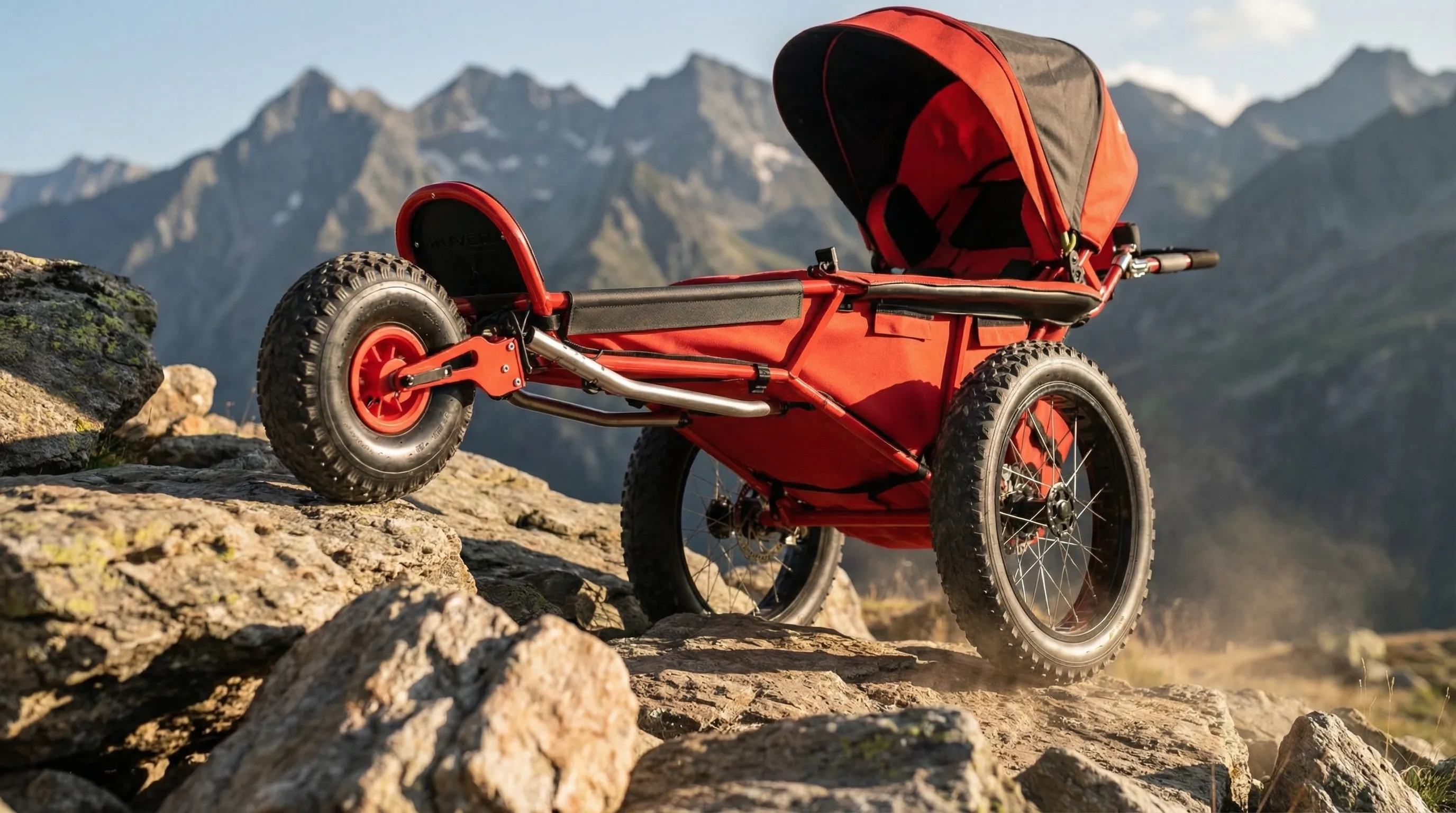

The xRover Buggy M is an off-road special with a monolithic aluminium reinforcement that stiffens the entire frame for extreme terrain. 20" × 4.0 Buggy wheels with wide tyres deliver maximum stability and traction across sand, snow, forest tracks and unpaved surfaces. The model includes the complete All-in-One M kit — cycle set, outdoor wheel, windstopper, rain cover, mosquito net and postural insert. It also ships with a dedicated transport bag for the Buggy wheels.

Monolithic aluminium reinforcement20" × 4.0 Buggy wheelsBuggy front wheel with forkFull All-in-One kitDedicated transport bagMaximum off-road stability

What's in the box

Folding aluminium frame with TH 900 joints
Monolithic reinforcement construction
Seat with 5-point harness

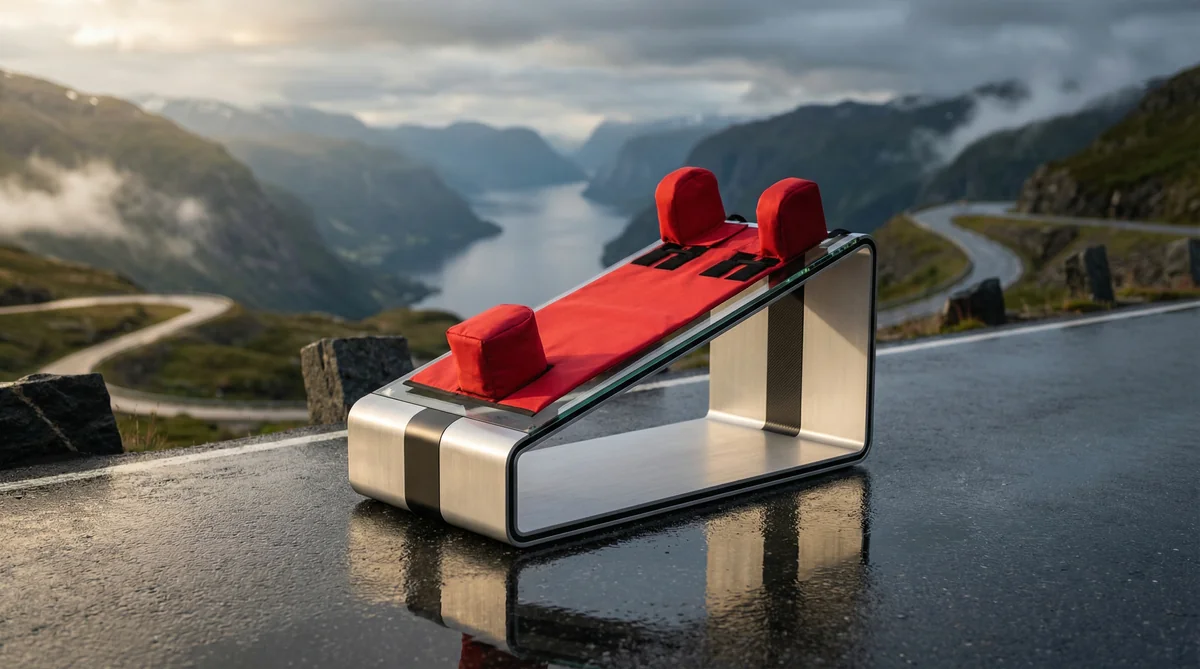

Postural insert
Canopy
Windstopper
Rain cover
Tropiko (mosquito net)
Cycle set — tow bar
14" outdoor wheel with fork
6" buggy front wheel
20" × 4.0 Buggy wheels
Buggy front wheel with fork
Dedicated Buggy wheel transport bag
20" rear wheels with drum brakes

Technical specifications

Frame

MaterialAluminium EN AW 6060/6061/6082
Frame weight4.3 kg
ReinforcementMonolithic aluminium
JointsMetal TH 900
FinishAnodizing / powder coating
FoldingYes — compact fold (handle, arch, wheels)
FastenersStainless steel A2

Dimensions

Wheelbase845 mm
Doorway clearance92 cm (guaranteed 95 cm)
Seat width36 cm (seated)
Seat depth35 cm
Backrest height104 cm
Handle height119 cm (standard) / 126 cm (long)

Wheels & brakes

Rear wheels20" solid with drum brakes + Buggy 20" × 4.0 set
Front wheel6" 360° swivel + 14" outdoor with fork + Buggy with fork
Drum brakes70 mm diameter
Rear-wheel camber12°

Load & safety

Max. load80 kg
Max. user height150 cm
Safety harness5-point with safety strap
Ready weightdepending on installed components — 15.9 – 20.9 kg
Terrain stabilityMaximum (monolithic reinforcement)

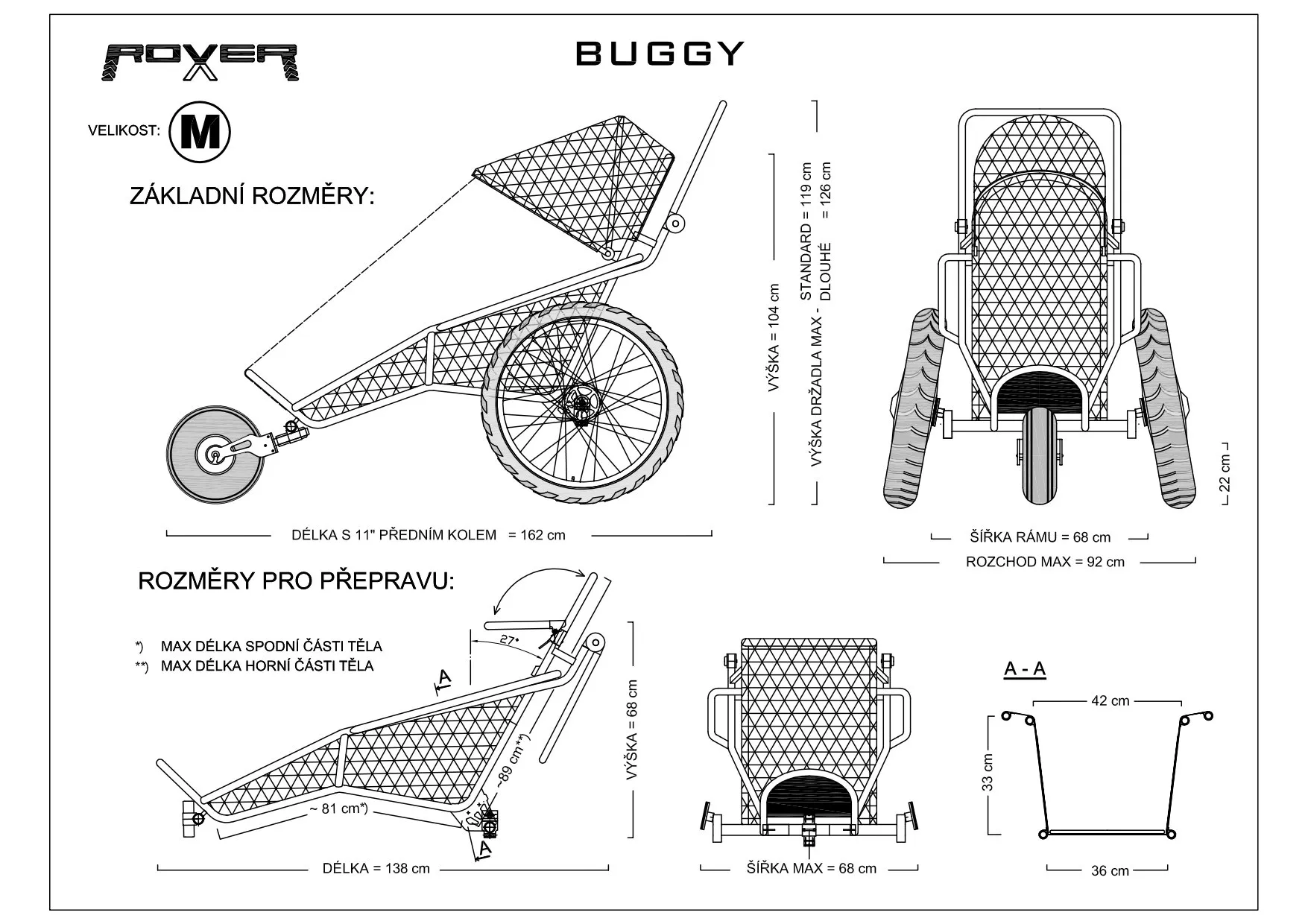

Technical drawing

Technical drawing — Buggy M Buggy M

Downloads

User manual — xRover M

PDF

Manual — xRover add-on

PDF

Tech sheet — front (M)

PDF

Tech sheet — back (M)

PDF

Notice — do not sit on the chair

PDF

Certifications

CE
MDR (EU 2017/745)
Swissdamed
ISO 7176 (wheelchairs)
Class I medical device
