xRover
All-in-One M

Full kit — mid-size

XR-502002

xRover REHA All-in-One M

From

€4,550

Colors (7)

The color can be customized to your preference — contact us with your own design.

Contact dealerTest drive

You don't have to do this alone

Standard line models are eligible for foundation-based funding. We'll walk you through the whole process — step by step, no extra paperwork on your shoulders.

About the product

The fully equipped xRover M. Maximum kit including metal TH 900 joints, cycle set and a complete accessory line-up.

The xRover All-in-One M is a fully equipped mid-size rehabilitation chair with metal TH 900 joints for maximum reliability. Includes year-round accessories: a complete cycle set with tow bar for 26–29" bikes, a 14" outdoor wheel with fork, a windstopper, rain cover, Tropiko mosquito net, postural insert and a handle pouch. The metal TH 900 joints replace plastic components for greater durability and safety. Doorway clearance 76 cm with guaranteed passage through 80 cm doors.

Complete cycle setMetal TH 900 jointsWindstopper + rain coverTropiko (mosquito net)Postural insertHandle pouch/bag

What's in the box

Monolithic aluminium frame
Seat
Five-point safety harness with padding
Canopy
Large rear bag
Tropiko (mosquito net)
20" rear wheels with drum brakes and parking lock
6" swivel front wheel with fork
Wrist safety strap
Connection elements for additional modules
Wheel bag
14" outdoor front wheel with fork
Bicycle tow bar with full accessories and fender
Windstopper
Rain cover
Handle pouch or bag (customer's choice)
Postural insert
Metal TH 88 joints
Plastic wheels (standard equipment)

Technical specifications

Frame

MaterialAluminium EN AW 6060/6061/6082
Frame weight4.1 kg
JointsMetal TH 900
FinishAnodizing / powder coating
FoldingYes — compact fold (handle, arch, wheels)
FastenersStainless steel A2

Dimensions

Wheelbase845 mm
Doorway clearance76 cm (guaranteed 80 cm)
Seat width36 cm (seated)
Seat depth33 cm
Backrest height95 cm
Handle height110 cm (standard) / 117 cm (long)

Wheels & brakes

Rear wheels20" solid with drum brakes
Outdoor front wheel14" with fork
Buggy front wheel6" swivel 360°
Drum brakes70 mm diameter
Rear-wheel camber12°

Load & safety

Max. load80 kg
Max. user height150 cm
Safety harness5-point with safety strap
Ready weightdepending on installed components — 12.9 – 17.9 kg

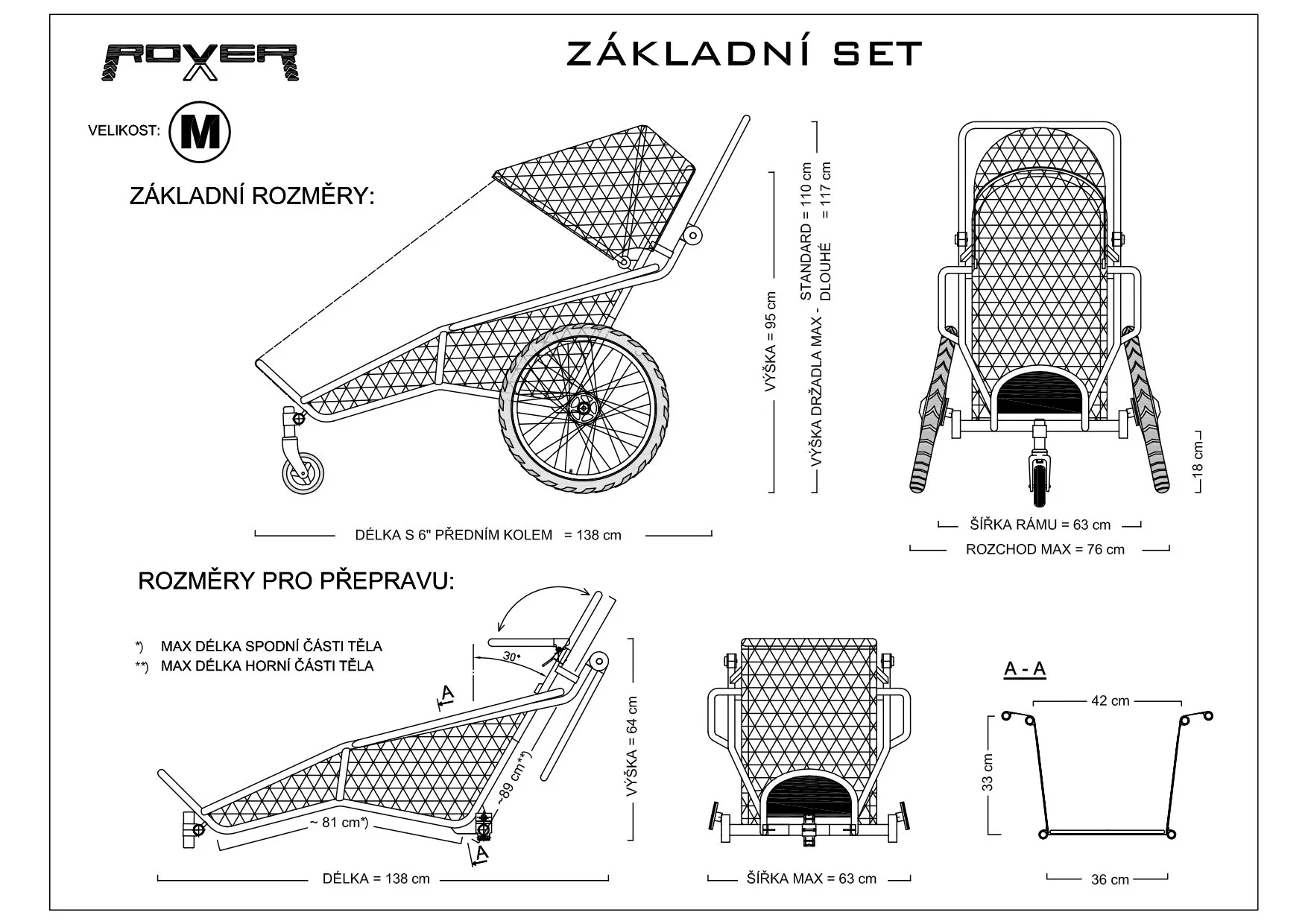

Technical drawing

Technical drawing — All-in-One M Basic

Downloads

User manual — xRover M

PDF

Manual — Beach set

PDF

Manual — SKI set

PDF

Tech sheet — front (M)

PDF

Tech sheet — back (M)

PDF

Notice — do not sit on the chair

PDF

Certifications

CE
MDR (EU 2017/745)
Swissdamed
ISO 7176 (wheelchairs)
Class I medical device
