Off-road special — adults

XR-503006

xRover REHA Buggy L

From

€5,250

Colors (7)

The color can be customized to your preference — contact us with your own design.

Contact dealer Test drive

You don't have to do this alone

Standard line models are eligible for foundation-based funding. We'll walk you through the whole process — step by step, no extra paperwork on your shoulders.

About the product

A monolithic aluminium-reinforced construction in L size. Bundles the full All-in-One L kit plus Buggy 20" × 4.0 wheels.

The xRover Buggy L is an off-road special for adult users up to 120 kg. The monolithic aluminium reinforcement stiffens the L-size frame for extreme terrain. 20" × 4.0 Buggy wheels with wide tyres handle sand, snow, forest tracks and unpaved surfaces with ease. Includes the full All-in-One L kit — cycle set, 14" outdoor wheel, windstopper, rain cover, mosquito net, postural insert and a wheel bag. A dedicated transport bag for the Buggy wheels keeps transit simple.

Monolithic aluminium reinforcement20" × 4.0 Buggy wheelsBuggy front wheel with forkFull All-in-One kitFor adults up to 120 kgMaximum off-road stability

What's in the box

Special monolithic aluminium-reinforced construction

Seat

Five-point safety harness with padding

Canopy

Large rear bag

Tropiko (mosquito net)

20" rear wheels with drum brakes and parking lock

6" swivel front wheel with fork

Wrist safety strap

Connection elements for additional modules

Wheel bag

14" outdoor front wheel with fork

Bicycle tow bar with full accessories and fender

Windstopper

Rain cover

Handle pouch or bag (customer's choice)

Postural insert

Metal TH 88 joints

Plastic wheels (standard equipment)

20" × 4.0 BUGGY wheel set

BUGGY front wheel with fork

Dedicated BUGGY wheel bag

Technical specifications

Frame

MaterialAluminium EN AW 6060/6061/6082

Frame weight4.7 kg

ReinforcementMonolithic aluminium

JointsMetal TH 900

FinishAnodizing / powder coating

FoldingYes — compact fold (handle, arch, wheels)

FastenersStainless steel A2

Dimensions

Wheelbase1,045 mm

Doorway clearance92 cm (guaranteed 95 cm)

Seat width36 cm (seated)

Seat depth35 cm

Backrest height112 cm

Handle height121 cm (standard) / 128 cm (long)

Wheels & brakes

Rear wheels20" solid with drum brakes + Buggy 20" × 4.0 set

Front wheel6" 360° swivel + 14" outdoor with fork + Buggy with fork

Drum brakes70 mm diameter

Rear-wheel camber12°

Load & safety

Max. load120 kg

Max. user height185 cm

Safety harness5-point with safety strap

Ready weightdepending on installed components — 18.9 – 22.9 kg

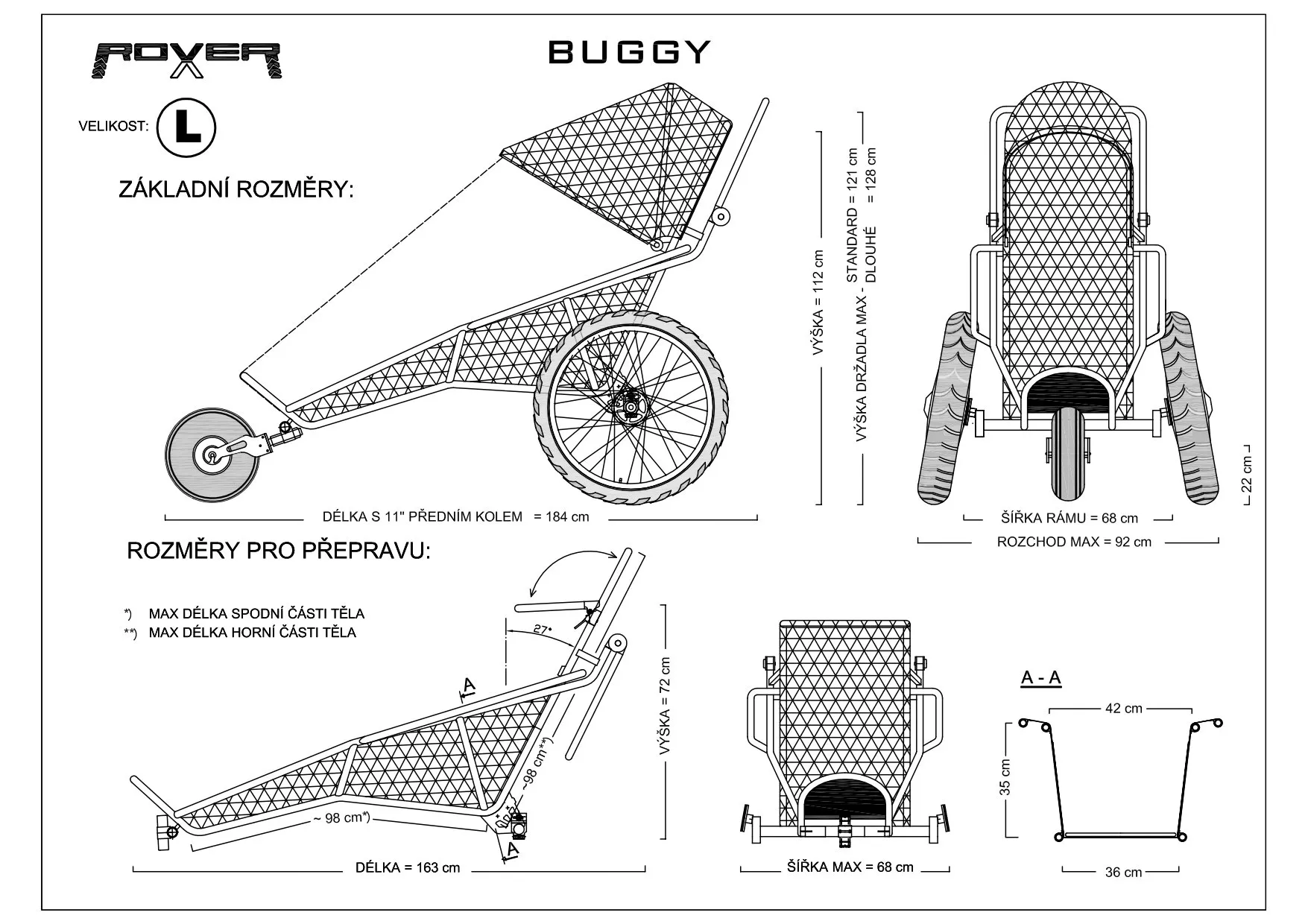

Technical drawing

Downloads

User manual — xRover L

PDF

Manual — xRover add-on

PDF

Tech sheet — front (L)

PDF

Tech sheet — back (L)

PDF

Notice — do not sit on the chair

PDF

Certifications

MDR (EU 2017/745)

Swissdamed

ISO 7176 (wheelchairs)

Class I medical device
