xRover
All-in-One LAI-generated

Full kit — adults

XR-503002

xRover REHA All-in-One L

From

CZK 113,000

Colors (7)

The color can be customized to your preference — contact us with your own design.

Contact dealerTest drive

Foundation-based funding

Standard line models are eligible for foundation-based funding. Each foundation has its own rules and application process.

About the product

The fully equipped xRover L for adults. Maximum kit with metal TH 900 joints and a full accessory line-up.

The xRover All-in-One L is the top-of-the-range adult chair for users up to 120 kg and roughly 185 cm in height. It pairs the full All-in-One kit with a robust L-size frame. 20" solid rear wheels with 70 mm drum brakes deliver reliable braking even under heavy load. Metal TH 900 joints increase the durability and safety of the entire construction. The package includes a complete cycle set, 14" outdoor wheel, windstopper, rain cover, Tropiko mosquito net, postural insert and a wheel bag. The 1,045 mm wheelbase ensures maximum stability.

Complete cycle set20" solid wheelsWindstopper + rain coverTropiko (mosquito net)Postural insertWheel bag

What's in the box

Folding aluminium frame with TH 900 joints
Seat with 5-point harness
Postural insert
Canopy
Windstopper
Rain cover
Tropiko (mosquito net)
Cycle set — tow bar for 26–29" bikes
14" outdoor wheel with fork
6" buggy front wheel
20" solid rear wheels with drum brakes
Wheel bag

Technical specifications

Frame

MaterialAluminium EN AW 6060/6061/6082
Frame weight4.4 kg
JointsMetal TH 900
FinishAnodizing / powder coating
FoldingYes — compact fold (handle, arch, wheels)
FastenersStainless steel A2

Dimensions

Wheelbase1,045 mm
Doorway clearance76 cm (guaranteed 80 cm)
Seat width36 cm (seated)
Seat depth35 cm
Backrest height103 cm
Handle height112 cm (standard) / 119 cm (long)

Wheels & brakes

Rear wheels20" solid with drum brakes
Outdoor front wheel14" with fork
Buggy front wheel6" swivel 360°
Drum brakes70 mm diameter
Rear-wheel camber12°

Load & safety

Max. load120 kg
Max. user height185 cm
Safety harness5-point with safety strap
Ready weightdepending on installed components — 14.9 – 19.9 kg

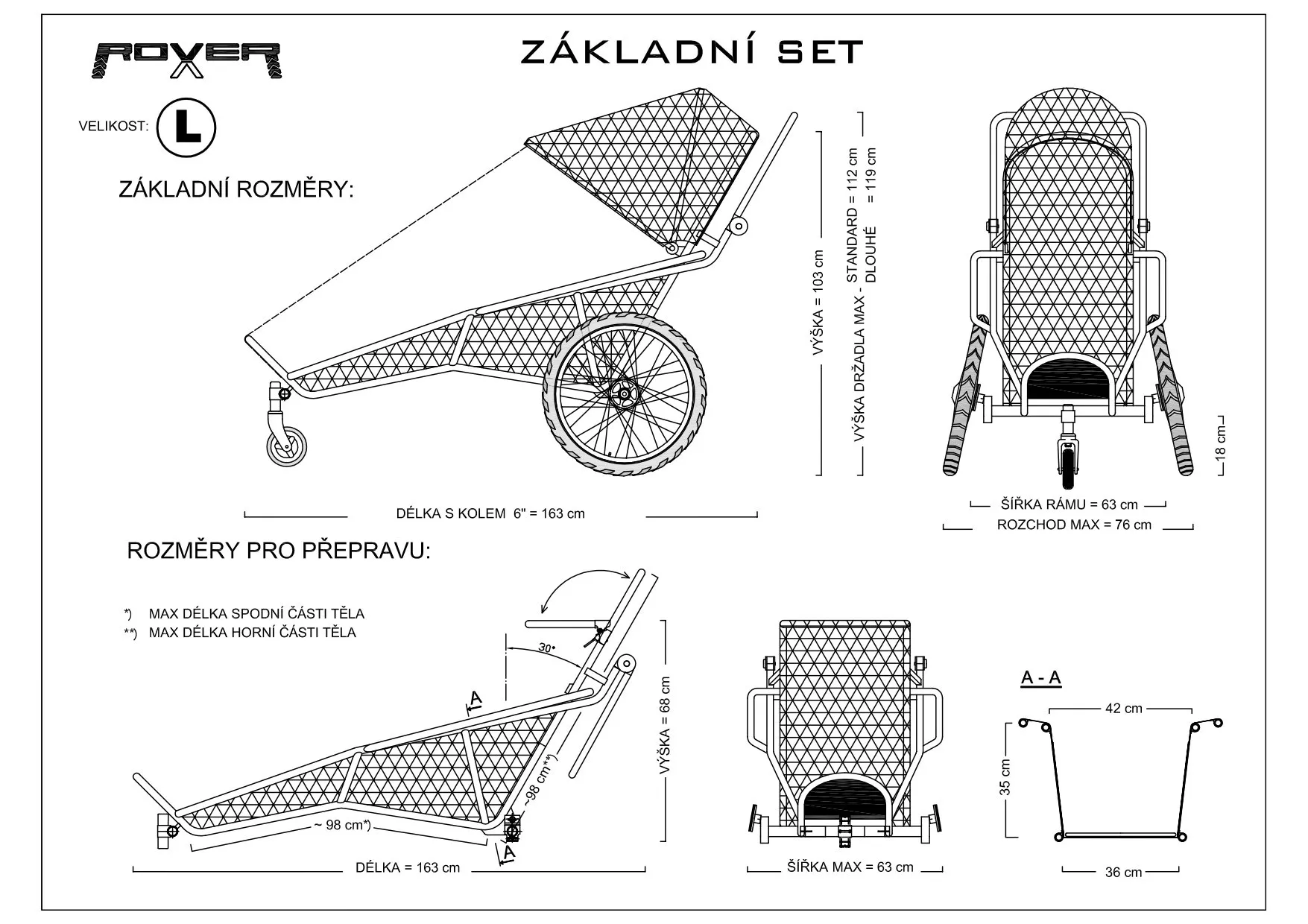

Technical drawing

Technical drawing — All-in-One L Basic

Downloads

User manual — xRover LPDFManual — Beach setPDFManual — SKI setPDFTech sheet — front (L)PDFTech sheet — back (L)PDFNotice — do not sit on the chairPDFUser manual — xRover Reha (DE)PDFTechnical data — xRover Reha (DE)PDFScope of delivery — xRover Reha (DE)PDFEU Declaration of Conformity — xRover Reha (DE)PDF

Certifications

CE
MDR (EU 2017/745)
Swissdamed
ISO 7176 (wheelchairs)
Class I medical device

Recommended accessories

Memory-foam soft insert

Memory-foam soft insert

Organic cotton with cut-outs for harness, leg straps and chest belt, plus an adjustable headrest. Padding for smaller children that also fits size M.

Positioning insert

Positioning insert

Reinforced insert with full head-to-toe support and a positioning wedge between the legs. Available made-to-measure.

Positioning insert — custom fit

Positioning insert — custom fit

Made-to-measure customization of the positioning insert to the child's individual needs.
